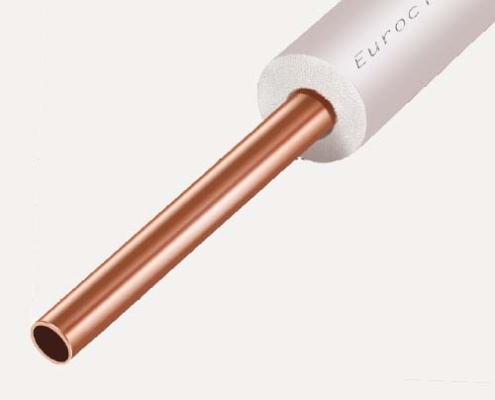

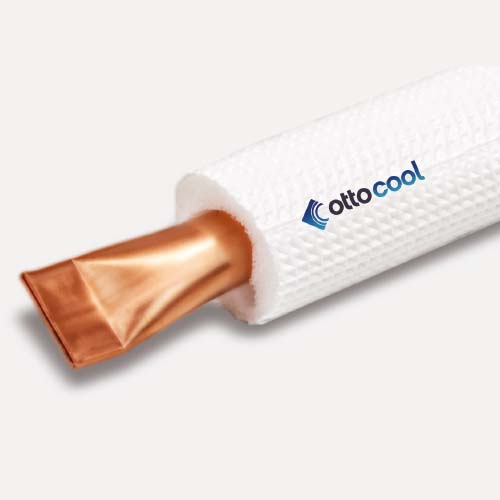

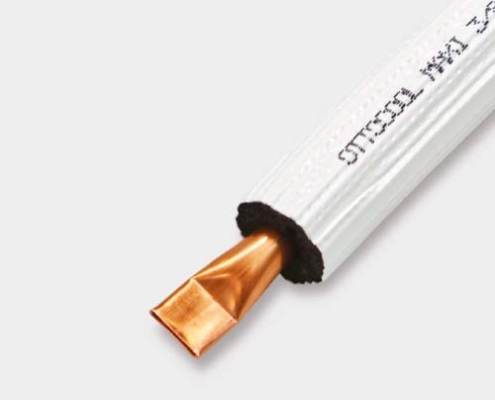

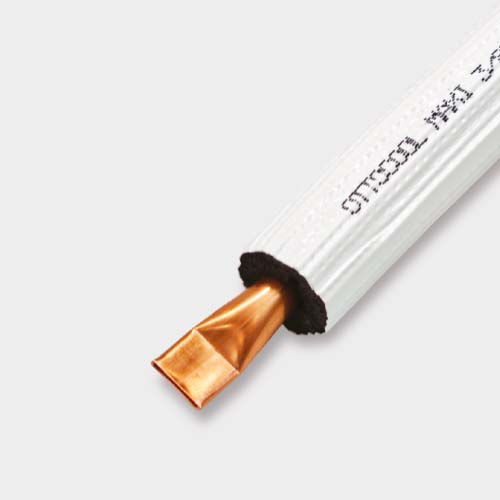

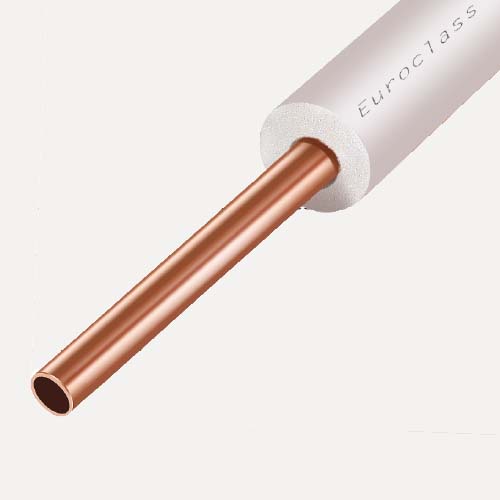

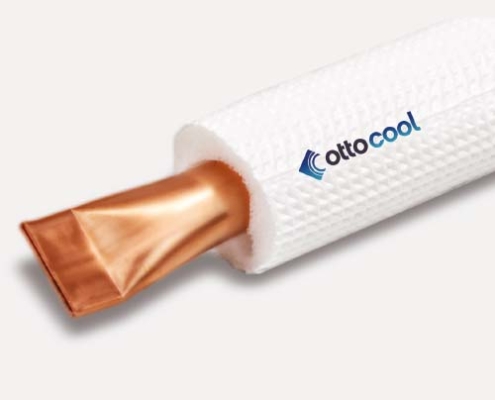

White PE Insulated Copper Tube
Suitable for air conditioning, refrigeration and industrial systems. Cu-Dhp 99,9% copper pipe insulated with an expanded polyethylene tube, closed cell and an external LDPE foil. Maximum Fire Safety with self-extinguishing DIN 4102-B1, SBI BL S1D0. Nontoxic gases and resistant to external chemical agents and ultra-violet rays.
Technical Description
Suitable for air conditioning, refrigeration and industrial systems. Cu-Dhp 99,9% copper pipe insulated with an expanded polyethylene tube, closed cell and an external LDPE foil. Maximum Fire Safety with self-extinguishing DIN 4102-B1, SBI BL S1D0. Nontoxic gases and resistant to external chemical agents and ultra-violet rays.
Technical Tables
Tab 1
Tab 2

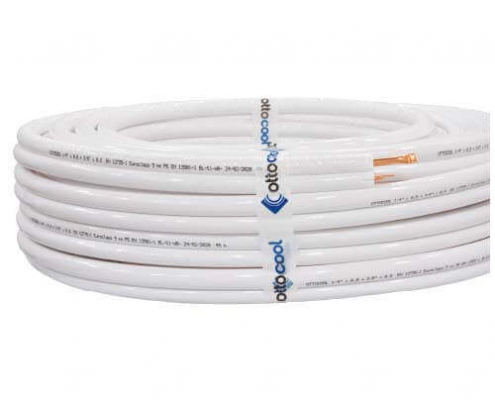

White Twin PE Insulated Copper Tube
White Twin PE Insulated Copper Tube
Technical Tables
| Pipe Diameter (inch) | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 7/8 |
|---|---|---|---|---|---|---|
| OTTOCOOL SPLIT | 0.7 mm | 0.7 mm | 0.7 mm | 0.8 mm | ||
| OTTOCOOL POLAR | 0.75 mm | 0.75 | 0.75 mm | 0.9 mm | 0.9 mm | |
| OTTOCOOL MAXI | 0.8 mm | 0.8 mm | 0.8 mm | 1.0 mm | 1.0 mm | 1.12 mm |
| OTTOCOOL PLUS | 1.0 mm | 1.0 mm | 1.0mm | 1.0 mm | 1.0 mm | 1.12 mm |
| White Twin PE Insulated Copper Tube | ||||||
|---|---|---|---|---|---|---|
| Pipe Diameter İNCH. | 1/4 + 3/8 | 1/4 + 1/2 | 1/4 + 5/8 | 3/8 + 5/8 | 3/8 + 3/4 | 1/2 + 3/4 |
| Pipe Thickness (mm) | 0,8 +0,8 | 0,8+ 0,9 | 0,8 + 1 | 0,8 + 1 | 0,8 + 1 | 0,8 + 1 |
| Insulation Thickness (mm) | 6-9-13-19 | 6-9-13-19 | 6-9-13-19 | 6-9-13-19 | 6-9-13-19 | 6-9-13-19 |
| Operation Pressure (bar) | 134-89 | 134-84 | 134-62 | 90-62 | 90-52 | 72-52 |
| Coil Length (meter) | 15-50 | 15-50 | 15-50 | 15-50 | 15-50 | 15-50 |

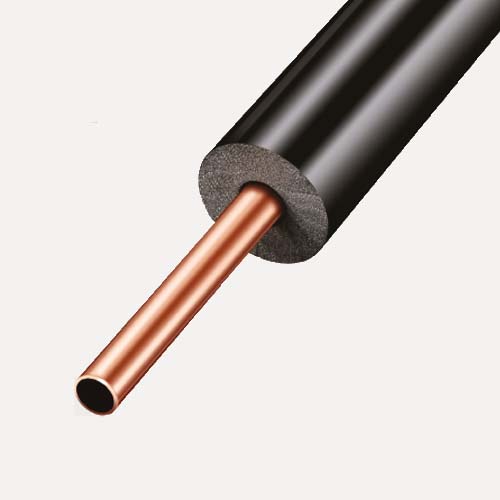

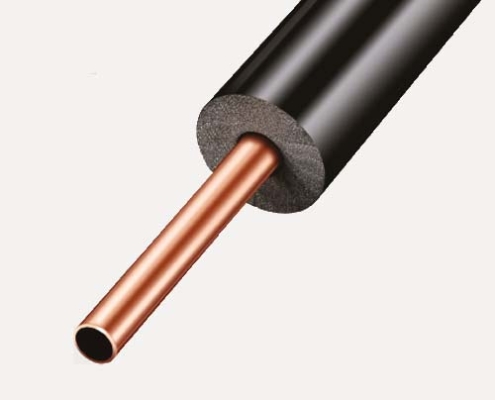

Black PE Insulated Copper Tube
Suitable for air conditioning, refrigeration and industrial systems. Cu-Dhp 99,9% copper pipe insulated with an expanded polyethylene tube, closed cell and an external LDPE foil. Maximum Fire Safety with self-extinguishing DIN 4102-B1, SBI BL S1D0. Nontoxic gases and resistant to external chemical agents and ultra-violet rays.
Technical Description
Suitable for air conditioning, refrigeration and industrial systems. Cu-Dhp 99,9% copper pipe insulated with an expanded polyethylene tube, closed cell and an external LDPE foil. Maximum Fire Safety with self-extinguishing DIN 4102-B1, SBI BL S1D0. Nontoxic gases and resistant to external chemical agents and ultra-violet rays.
Technical Tables

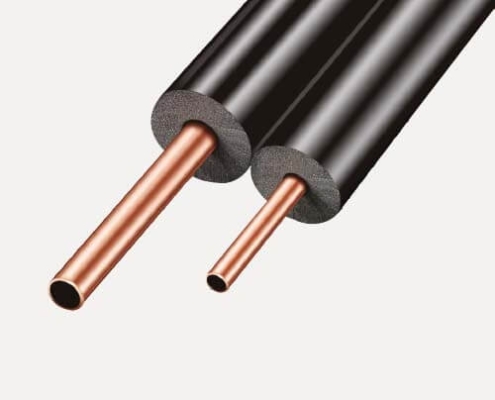

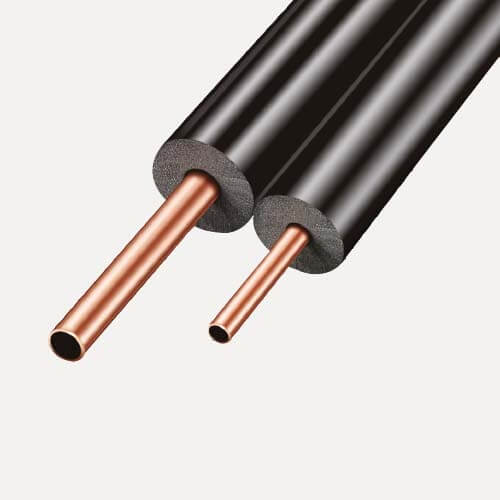

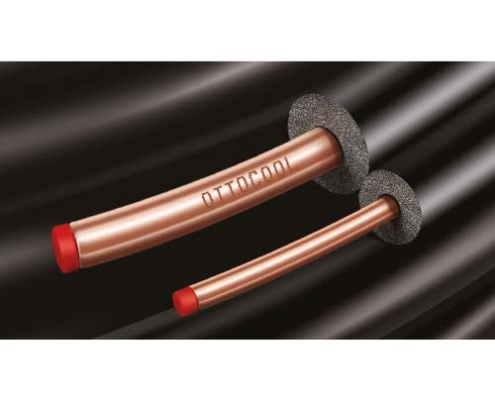

Black Twin PE Insulated Copper Tube
Black Twin PE Insulated Copper Tube
Technical Tables
Black Twin PE Insulated Copper Tube
| PE-INSULATED COPPER TUBE PRODUCT CATEGORIES | ||||||
|---|---|---|---|---|---|---|
| Pipe Diameter (inch) | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 7/8 |
| OTTOCOOL SPLIT | 0.7 mm | 0.7 mm | 0.7 mm | 0.8 mm | ||
| OTTOCOOL POLAR | 0.75 mm | 0.75 | 0.75 mm | 0.9 mm | 0.9 mm | |
| OTTOCOOL MAXI | 0.8 mm | 0.8 mm | 0.8 mm | 1.0 mm | 1.0 mm | 1.12 mm |
| OTTOCOOL PLUS | 1.0 mm | 1.0 mm | 1.0mm | 1.0 mm | 1.0 mm | 1.12 mm |
| Black Twin PE Insulated Copper Tube | ||||||
|---|---|---|---|---|---|---|
| Pipe Diameter (inch) | 1/4 + 3/8 | 1/4 + 1/2 | 1/4 + 5/8 | 3/8 + 5/8 | 3/8 + 3/4 | 1/2 + 3/4 |
| Pipe Thickness (mm) | 0,8 +0,8 | 0,8+ 0,9 | 0,8 + 1 | 0,8 + 1 | 0,8 + 1 | 0,8 + 1 |
| Insulation Thickness (mm) | 6-9-13-19 | 6-9-13-19 | 6-9-13-19 | 6-9-13-19 | 6-9-13-19 | 6-9-13-19 |
| Operation Pressure (bar) | 134-89 | 134-84 | 134-62 | 90-62 | 90-52 | 72-52 |
| Coil Length (meter) | 15-50 | 15-50 | 15-50 | 15-50 | 15-50 | 15-50 |

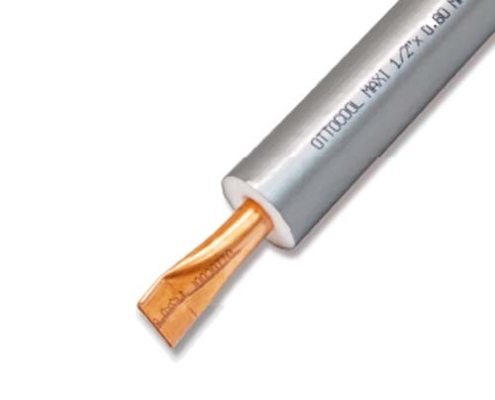

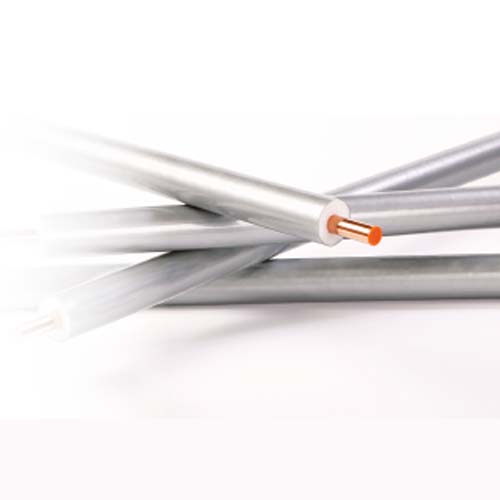

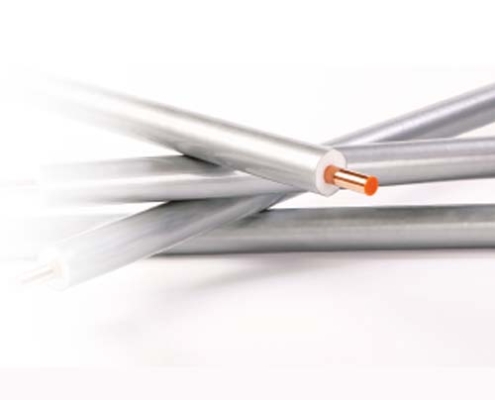

PE Platina Insulated Copper Tube
Suitable for air conditioning, refrigeration and industrial systems. Cu-Dhp 99,9% copper pipe insulated with an expanded polyethylene tube, closed cell and an external LDPE foil. Maximum Fire Safety with self-extinguishing DIN 4102-B1, SBI BL S1D0. Nontoxic gases and resistant to external chemical agents and ultra-violet rays.
Technical Description
Suitable for air conditioning, refrigeration and industrial systems. Cu-Dhp 99,9% copper pipe insulated with an expanded polyethylene tube, closed cell and an external LDPE foil. Maximum Fire Safety with self-extinguishing DIN 4102-B1, SBI BL S1D0. Nontoxic gases and resistant to external chemical agents and ultra-violet rays.
Technical Tables
Platina Twin PE Insulated Copper Tube
Platina Twin PE Insulated Copper Tube
Technical Tables
Platina Twin PE Insulated Copper Tube
| Platina Twin PE Insulated Copper Tube | ||||||
|---|---|---|---|---|---|---|
| Pipe Diameter (inch) | 1/4 + 3/8 | 1/4 + 1/2 | 1/4 + 5/8 | 3/8 + 5/8 | 3/8 + 3/4 | 1/2 + 3/4 |
| Pipe Thickness (mm) | 0,8 +0,8 | 0,8+ 0,9 | 0,8 + 1 | 0,8 + 1 | 0,8 + 1 | 0,8 + 1 |
| Insulation Thickness (mm) | 6-9-13-19 | 6-9-13-19 | 6-9-13-19 | 6-9-13-19 | 6-9-13-19 | 6-9-13-19 |
| Operation Pressure (bar) | 134-89 | 134-84 | 134-62 | 90-62 | 90-52 | 72-52 |
| Coil Length (meter) | 15-50 | 15-50 | 15-50 | 15-50 | 15-50 | 15-50 |
| PE-INSULATED COPPER TUBE PRODUCT CATEGORIES | ||||||
|---|---|---|---|---|---|---|
| Pipe Diameter (inch) | 1/4 | 3/8 | 1/2 | 5/8 | 3/4 | 7/8 |
| OTTOCOOL PLATINA SPLIT | 0.7 mm | 0.7 mm | 0.7 mm | 0.8 mm | ||
| OTTOCOOLPLATINA POLAR | 0.75 mm | 0.75 | 0.75 mm | 0.9 mm | 0.9 mm | |
| OTTOCOOL PLATINA MAXI | 0.8 mm | 0.8 mm | 0.8 mm | 1.0 mm | 1.0 mm | 1.12 mm |
| OTTOCOOL PLATINA PLUS | 1.0 mm | 1.0 mm | 1.0mm | 1.0 mm | 1.0 mm | 1.12 mm |
