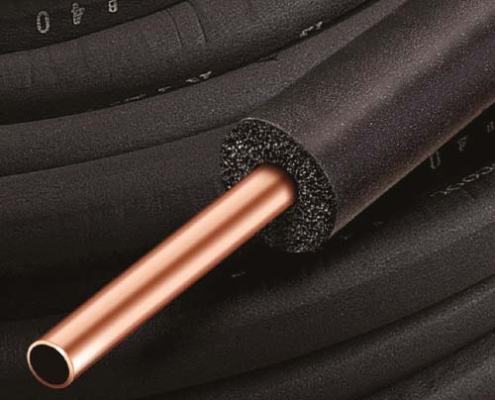

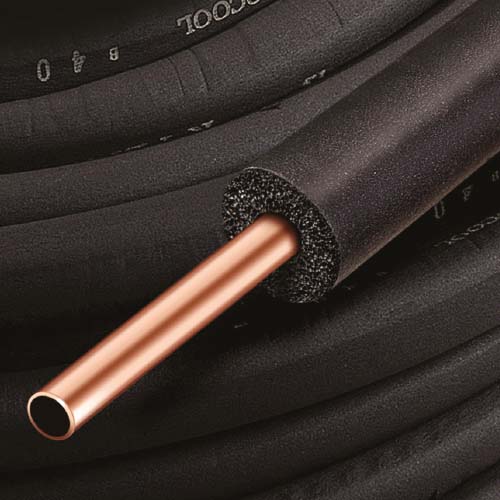

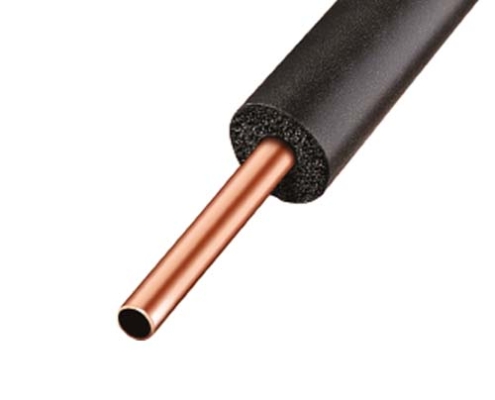

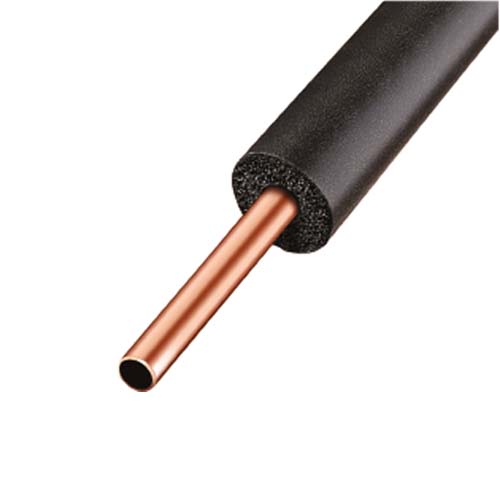

Rubber Foam Insulated Copper Tube

Effective solutions for cooling, air conditioning and industrial systems. Gets a maximum saving with low coefficient of thermal conductivity (0,034W/mK). Maximum Fire Safety with EN 13501-1 B-s2 d0. Nontoxic gases and smokes during the fire. Rubber Insulated Copper Tube is suitable also for food industry, subways and submarines. Environmentally friendly, not contain HCFC- GFC.

Technical Description

Technical Tables

TECHNICAL SPECS OF RUBBER INSULATION
Heat Transfer Coefficient EN 12667	0,039 W/mK (25 C)
	0,040 W/mK (50 C)
	0,041 W/mK (+75 C)
Water Vapor Diffusion Resistance	> 7.000
Coefficient EN 13469 (u)	> 7.000
Fire Classification EN 13501-1	BL-s2-d0
Fire Classification BS 476	Class 0
Corrosion Risk	DIN 1988/7 Certified
Temperature Resistance °C	-45 / + 116 (Pipe)

TECHNICAL SPECS OF COPPER PIPE
Chemical Composition	99,9% Cu-Dhp
Conformity	EN 12735 – 1
Unit Breaking Load	Min. R=220n/mm2
Elongation A%	A% min=45%
Physical Condition	Annealed
Internal Surface	Glossy, pertectly clean conforming ASTM B-280 and EN12735-1 legislation
Heat Conduction at 20°C	364W/mK
Condition	Sealed ends, dehumified

Rubber Foam Insulated Copper Tube
Pipe Diameter (inch)	1/4	3/8	1/2	1/2	5/8	3/4	7/8
Pipe Thickness (mm)	0,8	0,8	0,8	0,9	1	1	1,12
Insulation Thickness (mm)	6-9-13-19	6-9-13-19	6-9-13-19	6-9-13-19	6-9-13-19	6-9-13-19	6-9-13-19
Operation Pressure (bar)	134	89	72	84	62	52	42
Coil Length (meter)	15-50	15-50	15-50	15-50	15-50	15-50	15-50

Rubber Foam Insulated Copper Tube

Rubber Foam Insulated Copper Tube
