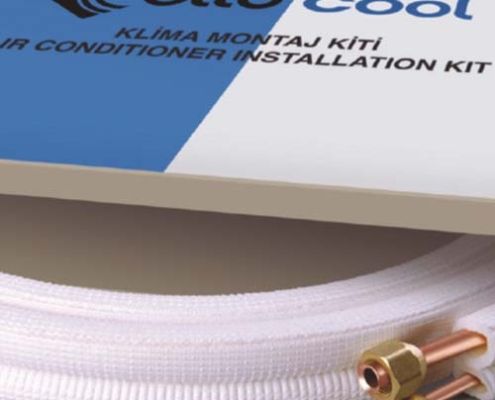

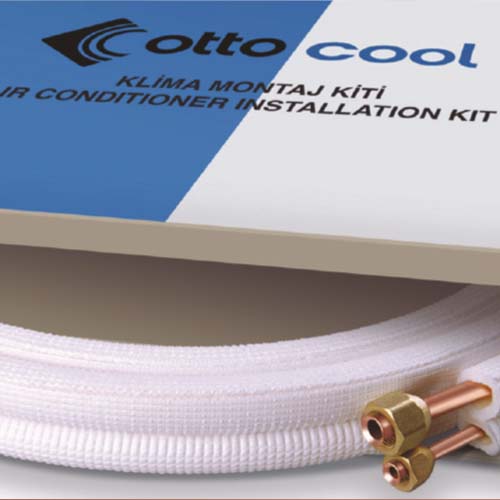

A/C Installation Kits

Ideal solution for air conditioning and refrigeration systems: Ottocool “Ready to Use” Montage Kit. Closed-cell expanded Polyethilene. Gets a Maximum saving with low coefficient of thermal conductivity (0,036W/mK). Maximum Fire Safety with self-extinguishing CL. 1- DIN4102 B2. White external extruded PE-Layer, nontoxic gases and resistant to external chemical agents and ultraviolet rays.

Technical Descriptions

Technical Tables

TECHNICAL SPECS OF PE INSULATION
Heat Conductivity Coefficient DIN 52613 and 52612	0,036 W/mK (0 °C)
Water Vapor Diffusion Resistance Coefficient (u)	> 5.000
Fire Classification DIN 4102-B2	Class 1
Insulation density	35 kg/m3
Operating Temperature Range	-80°C/ + 95°C

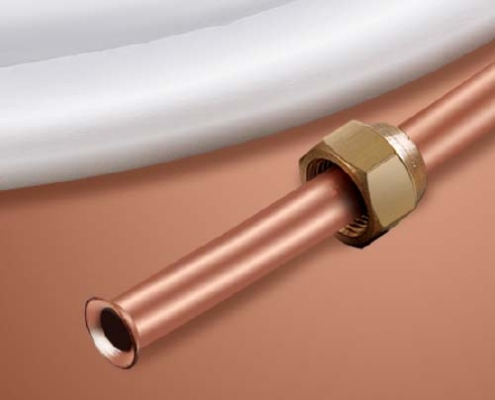

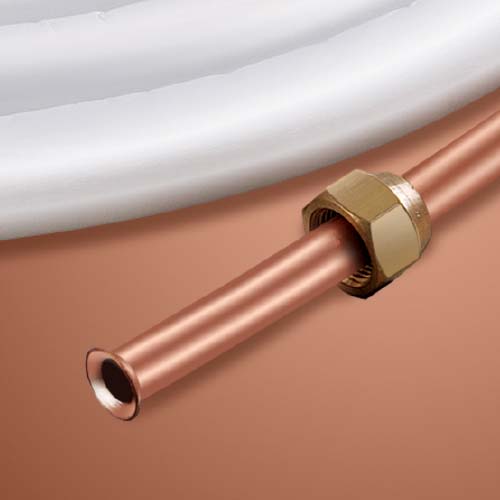

TECHNICAL SPECS OF PE COPPER PIPE
Chemical Compotion	99,9% Cu-Dhp
Conformity	EN 12735 – 1
Unit Breaking Load	Min. R=220n/mm2
Elongation A%	A% min=45%
Physical Condition	Annealed
Internal Surface	Glossy, pertectly clean conforming ASTM B-280 and EN12735-1 legislation
Heat Conduction at 20°C	364W/mK
Condition	Sealed ends, dehumified

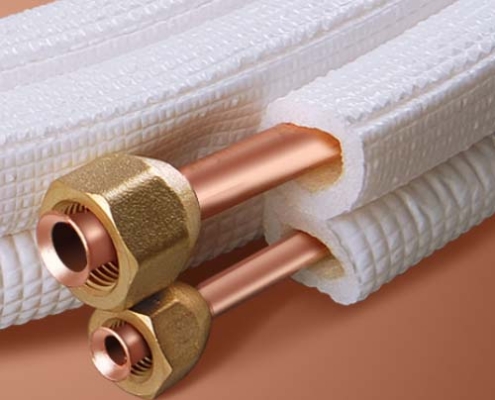

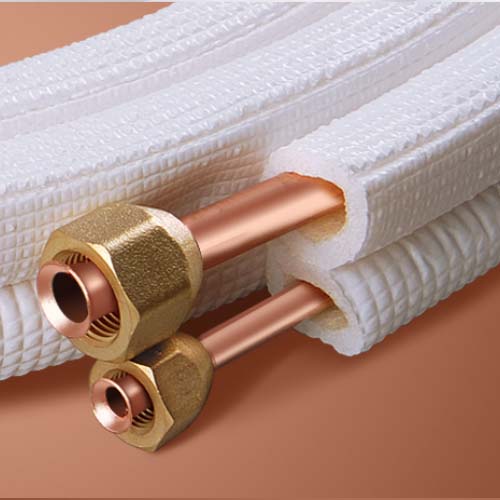

INSULATED COPPER TUBE- MONTAGE KIT VRF SYSTEM
Pipe Diameter (inch)	1/4 + 3/8	1/4 + 1/2	1/4 + 1/2	1/4 + 5/8	3/8 + 5/8	3/8 +3/4	1/2 + 3/4
Pipe Thickness (mm)	0,8 +0,8	0,8 + 0,8	0,8+ 1,0	0,8 + 1	0,8 + 1,0	0,8 + 1,0	0,8 + 1,0
Insulation Thickness (mm)	6+6	6+6	6-9-13-19	6+6	6+6	6+6	6+6
Operation Pressure (bar)	94-89	94-72	94-62	94-62	89-62	89-52	72-52
Coil Length (meter)	3-4-5-7-10-15	3-4-5-7-10-15	3-4-5-7-10-15	3-4-5-7-10-15	3-4-5-7-10-15	3-4-5-7-10-15	3-4-5-7-10-15

INSULATED COPPER TUBE- MONTAGE KIT SPLIT SYSTEM
Pipe Diameter (inch)	1/4 + 3/8	1/4 + 1/2	1/4 +1/2	1/4 + 5/8	3/8 + 5/8	3/8 +3/4	1/2 + 3/4
Pipe Thickness (mm)	0,7 +0,7	0,7 + 0,7	0,7+ 0,8	0,8 + 1	0,7 + 0,8	0,7 + 0,9	0,7 + 0,9
Insulation Thickness (mm)	6+6	6+6	6+6	6+6	6+6	6+6	6+6
Operation Pressure (bar)	94-61	94-58	94-52	61-52	61-52	61-47	58-47
Coil Length (meter)	3-4-5-7-10-15	3-4-5-7-10-15	3-4-5-7-10-15	3-4-5-7-10-15	3-4-5-7-10-15	3-4-5-7-10-15	3-4-5-7-10-15
